We’re excited to share some mechanical room photos from a recent system install by Kline’s Kustom Heating & Air!

This home’s hydronic system utilizes Messana mControls to manage 244 Ray Magic® radiant ceiling panels (heating and cooling), a radiant floor (heating only), and two hydronic fan coils!

Key components of this home’s hydronic system include:
– 3 SpacePak System Heat Pumps
– 1 Navien Inc Boiler
– 2 Messana Air Treatment Units
– 2 Hydronic Fan Coils
– 12 Grundfos Pumps (UPS, ALPHA2, MAGNA3)
– 4 Belimo Mixing Valves
– 2 Belimo Diverting Valves

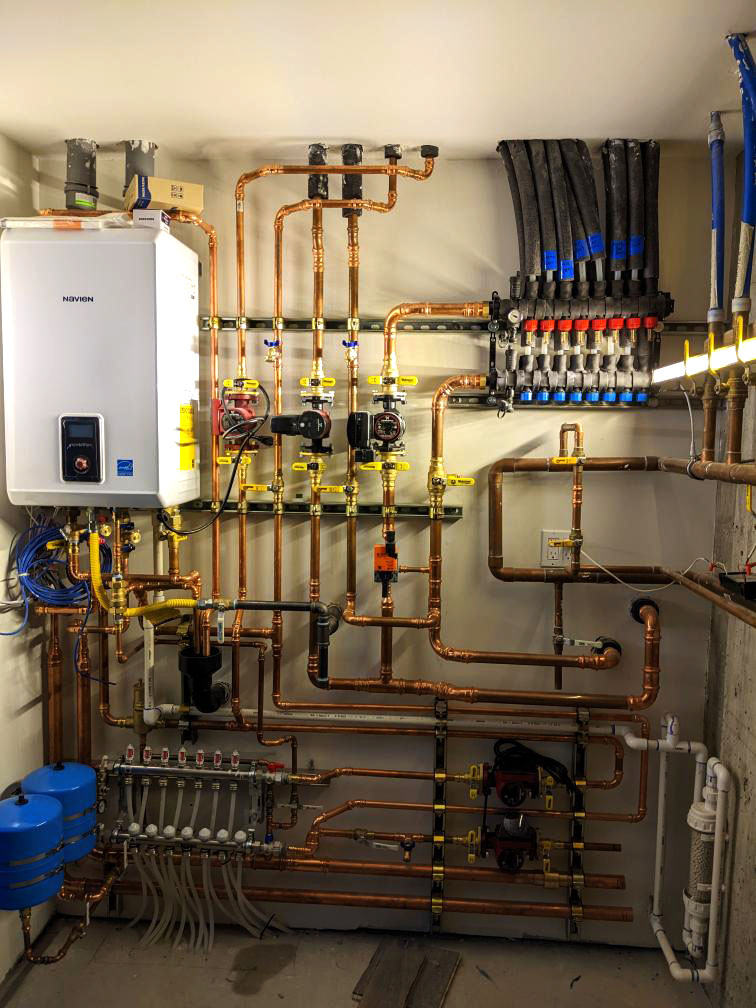

Mechanical room for a complex hydronic system that provides radiant cooling via a Messana Ray Magic® radiant ceiling.

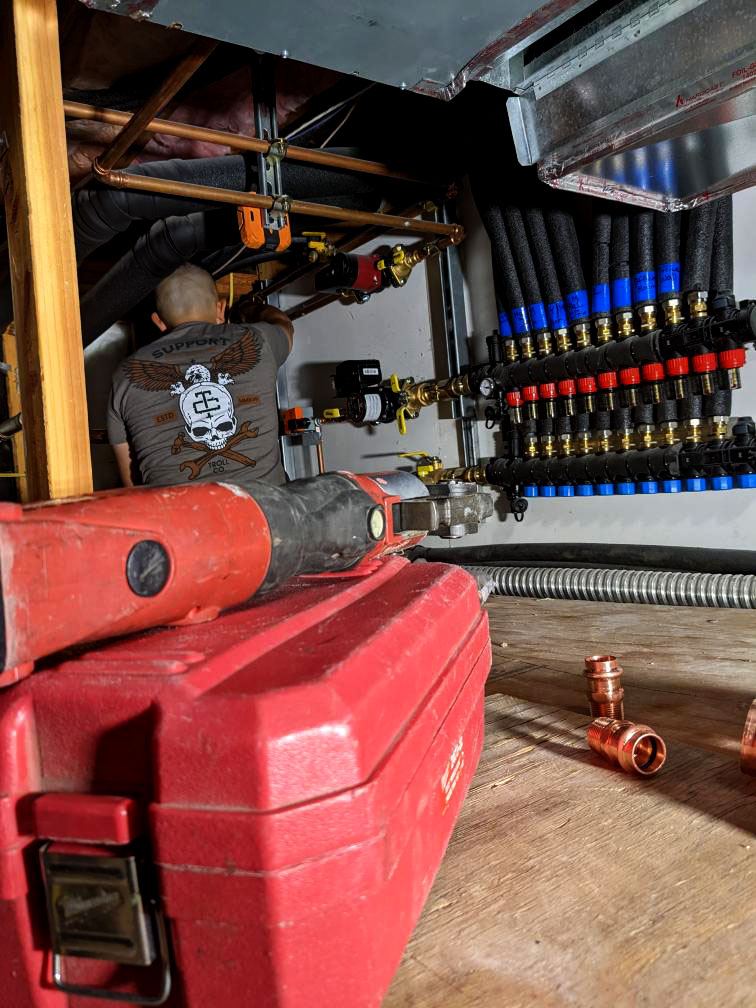

Kline's Kustom Heating and Air working on a Messana Modular Manifold for a Radiant Ceiling/Floor and Fan Coil system.
