Commercial

Atherton Civic Center

  • Year

    2022

  • Area

    5,500 sqft

  • Architect

    WRNS Studio Design

  • Mechanical Engineer

    Interface Group

Radiant Ceiling
Radiant Ceiling
Radiant Floor
Radiant Floor

In 2022, the newly constructed Atherton Civic Center, a remarkable project valued at $32 million, became the epitome of innovative climate control. Located in Atherton, California, this architectural marvel spanning 5,500 sqft was brought to life through the collaborative efforts of WRNS Studio Design and Interface Group as the mechanical engineer.

The crown jewel of this civic center is its hydronic four-pipe heating and cooling system. This system employs our cutting-edge Ray Magic® Quad ceiling tiles and a radiant floor. What sets this system apart is its versatility: each zone of the building can be heated or cooled independently, offering precise climate control tailored to the occupants’ needs.

The orchestration of the mixing and changeover stations within this innovative system is seamlessly handled by the Messana control platform. This platform not only ensures the system’s efficiency but also integrates harmoniously with the Building Management System (BMS) via Modbus.

We take immense pride in knowing that the elected officials, city employees, and police officers of Atherton will enjoy year-round comfort thanks to this unique Messana system.

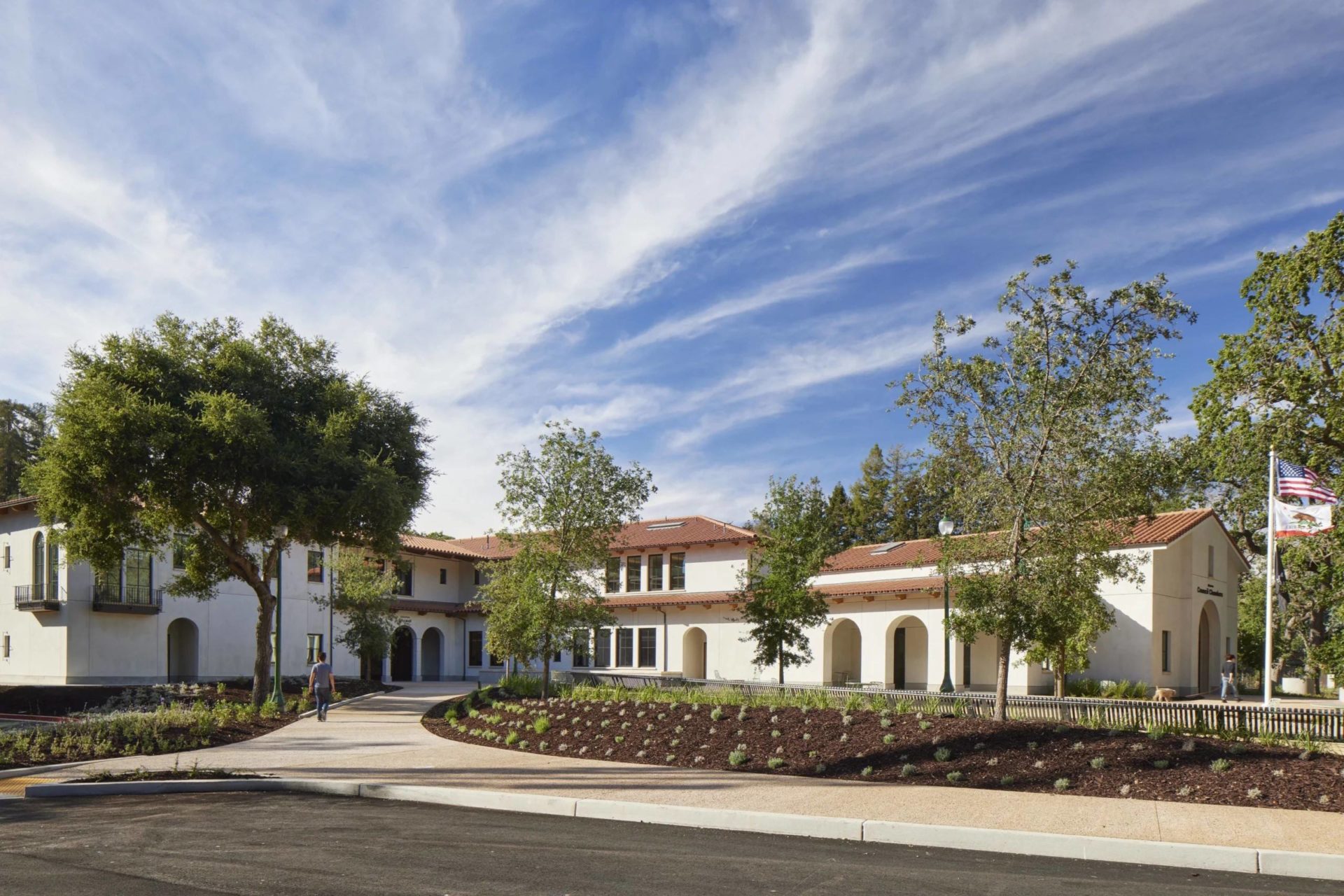

Exterior of Atherton Civic Center that uses Messana Radiant Cooling and Heating Ceiling Panels.

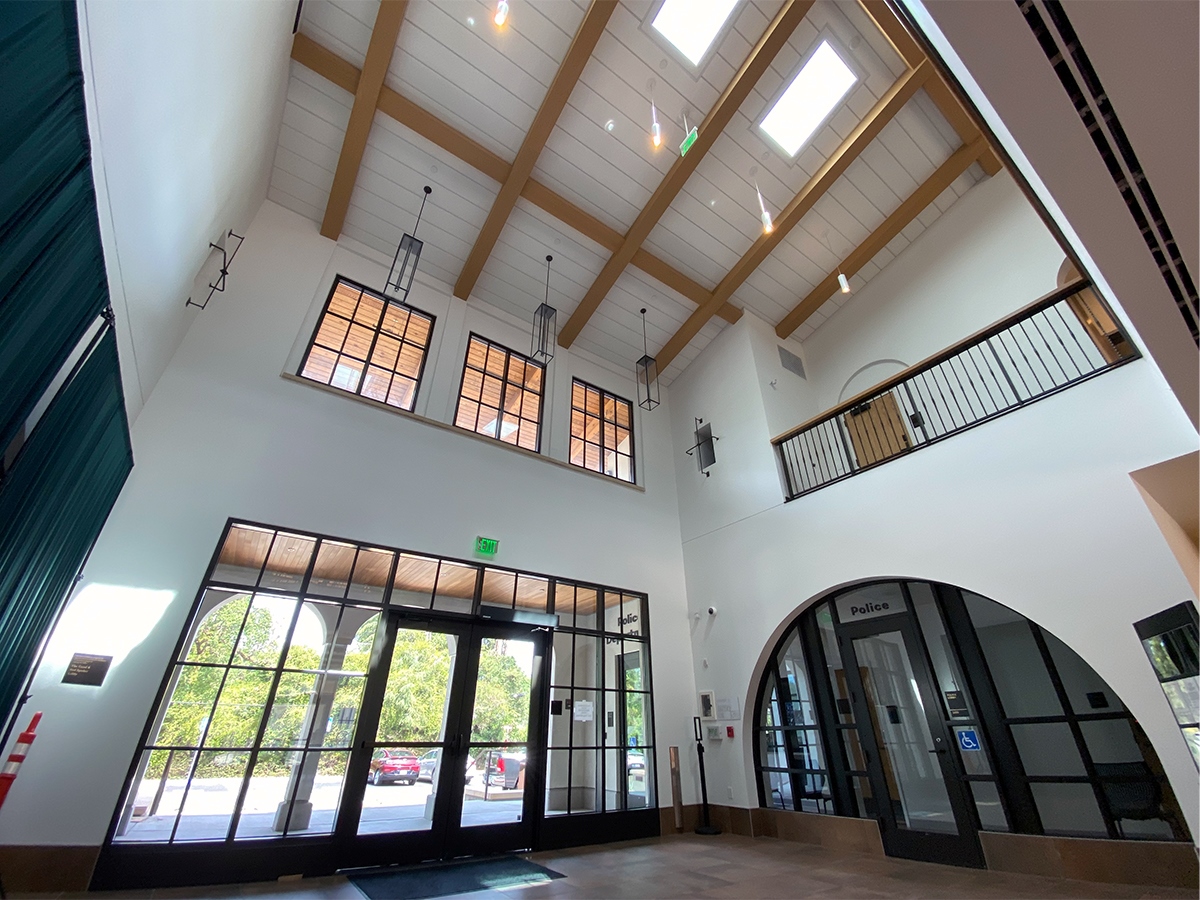

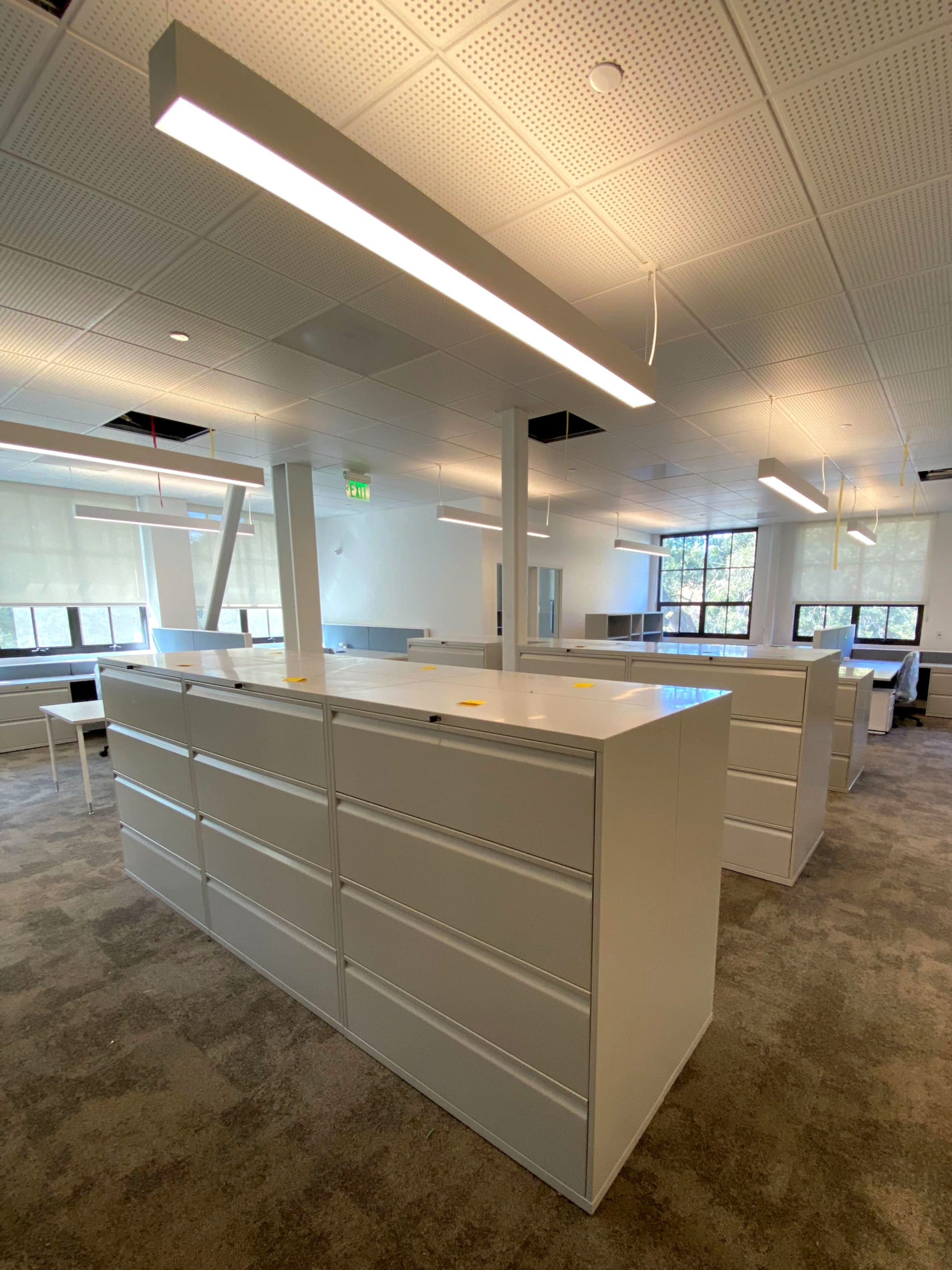

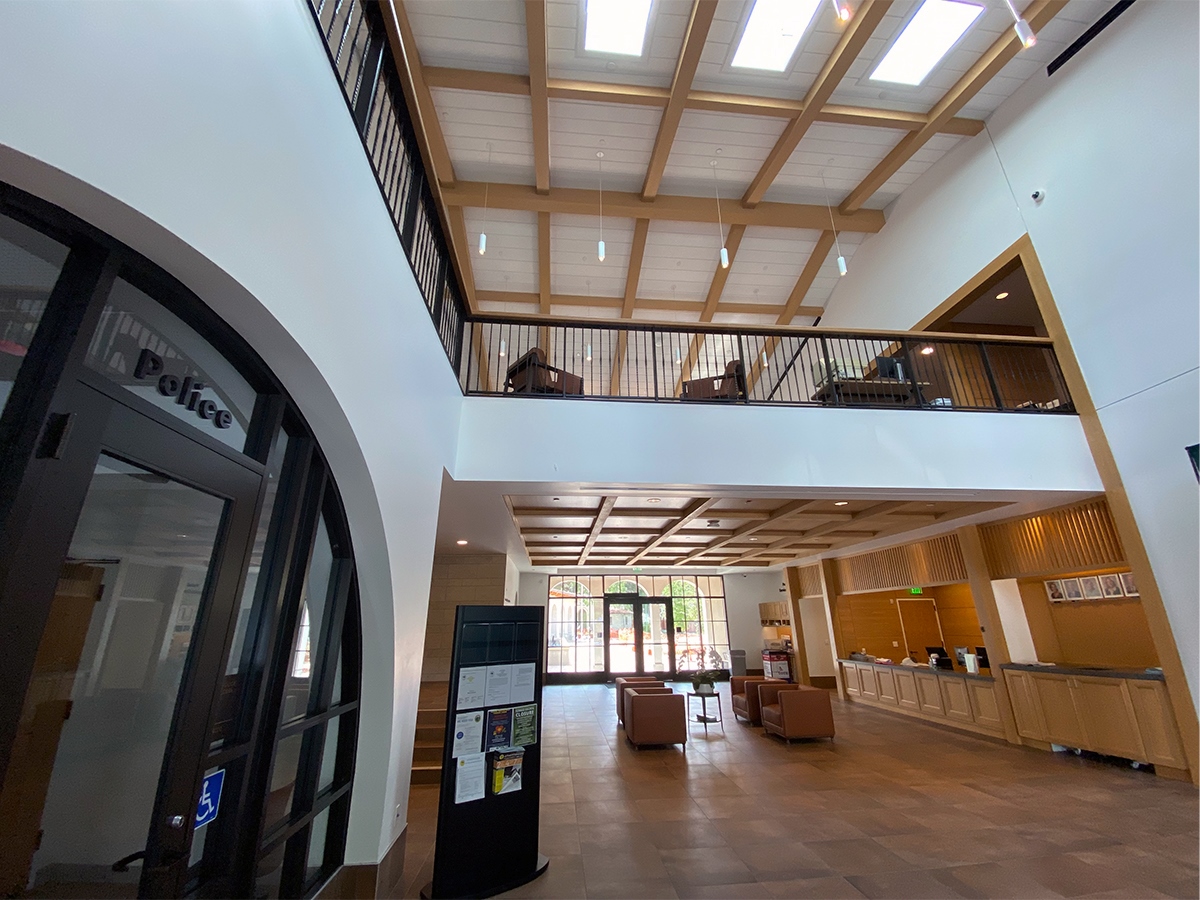

Interior of Atherton Civic Center that uses the Messana Climate Control Platform. Interior of Atherton Civic Center. It is conditioned using a Ray Magic radiant cooling and heating system. Offices conditioned by a radiant ceiling system in the Atherton Civic Center.
