Residential

Rinconada Residence

  • Year

    2014

  • Area

    4,900 sqft

  • Architect

    FGY Architects

Radiant Ceiling
Radiant Ceiling
Heat Pump
Heat Pump

In 2014, Palo Alto saw the rise of a 4,900 sqft residence seamlessly fusing Spanish Colonial aesthetics with modern sustainability. Designed by FGY Architects, this masterpiece illustrates how timeless design can harmonize with cutting-edge technology to create a truly comfortable living space.

The Spanish Colonial-style façade authentically blends with the neighborhood, while reducing heating and cooling loads. Its simple forms and courtyard design exude quiet sophistication, offering flexibility for client-hosted gatherings. The home’s commitment to aesthetics without compromising sustainability is evident through modern materials, techniques, and systems, creating an exceptionally energy-efficient and healthy living space.

Certified as LEED Platinum and a Passive House, it challenges the notion that sustainable building sacrifices speed or comes at a premium. The Messana Ray Magic® radiant cooling and heating ceiling system, coupled with Messana Controls and an air-to-water heat pump, ensures optimal comfort, year-round. This blend ensures precise temperature management and minimal energy consumption, showcasing how advanced HVAC systems can seamlessly integrate into architectural excellence, creating a sustainable and inviting living environment.

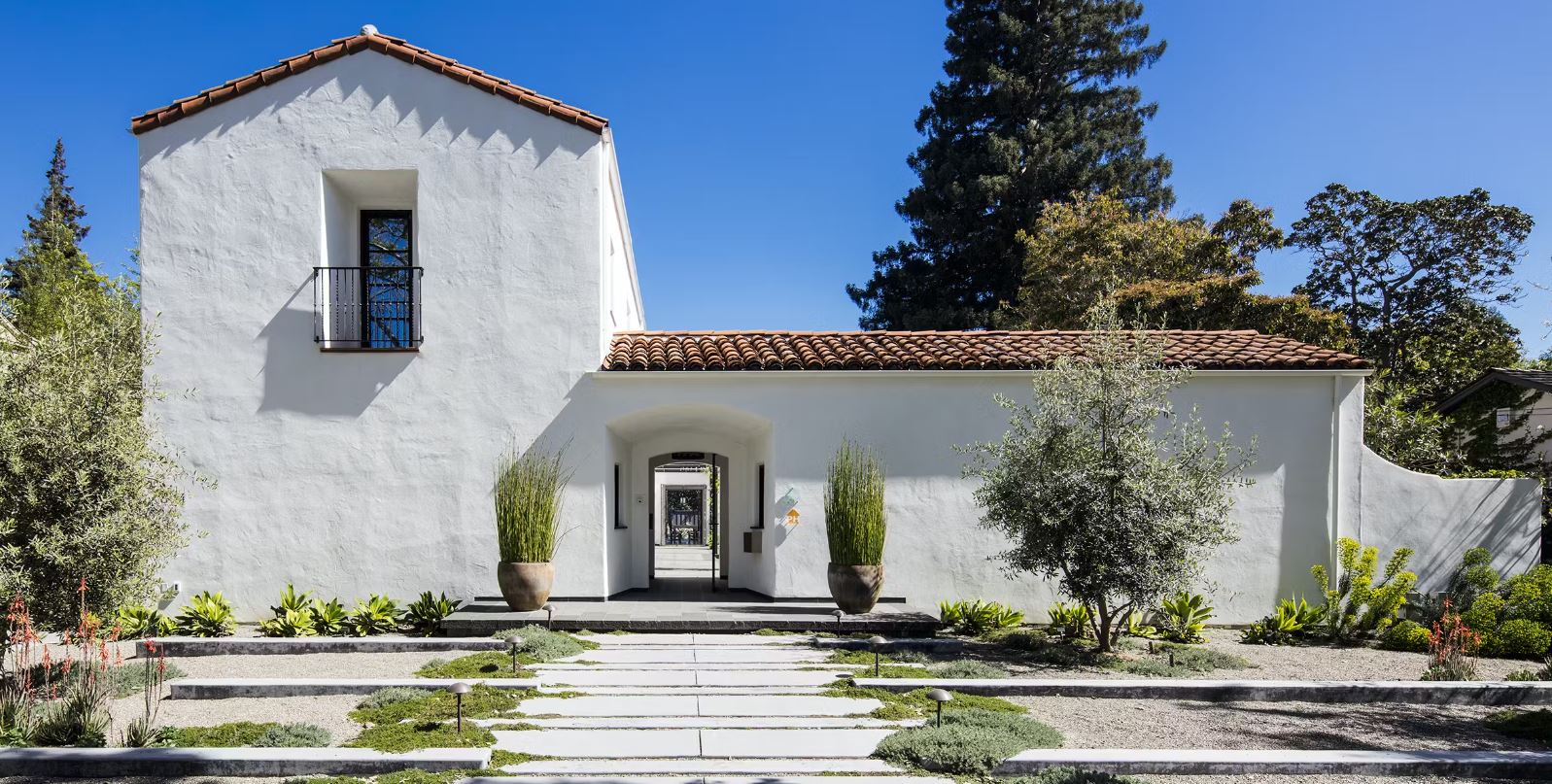

Exterior photo of home that utilizes a Messana Ray Magic® radiant ceiling panel system.

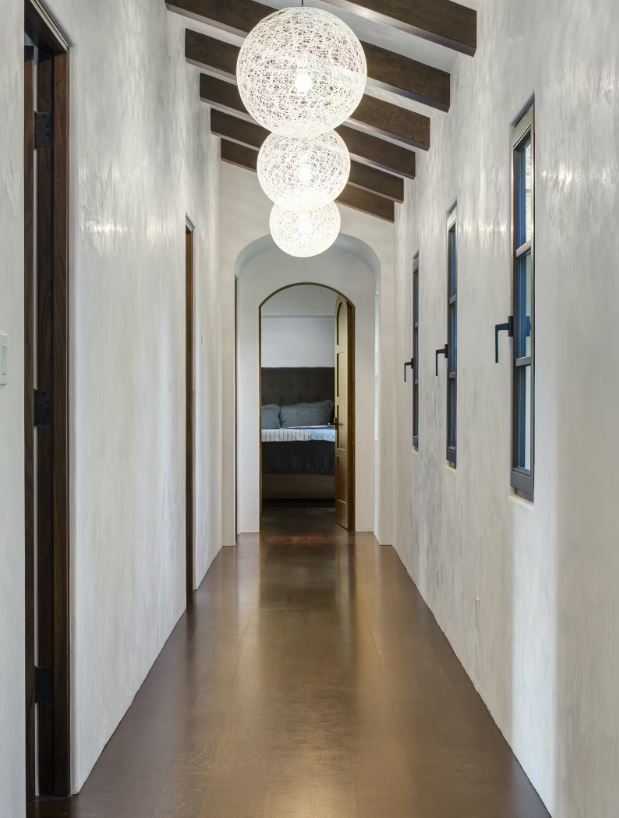

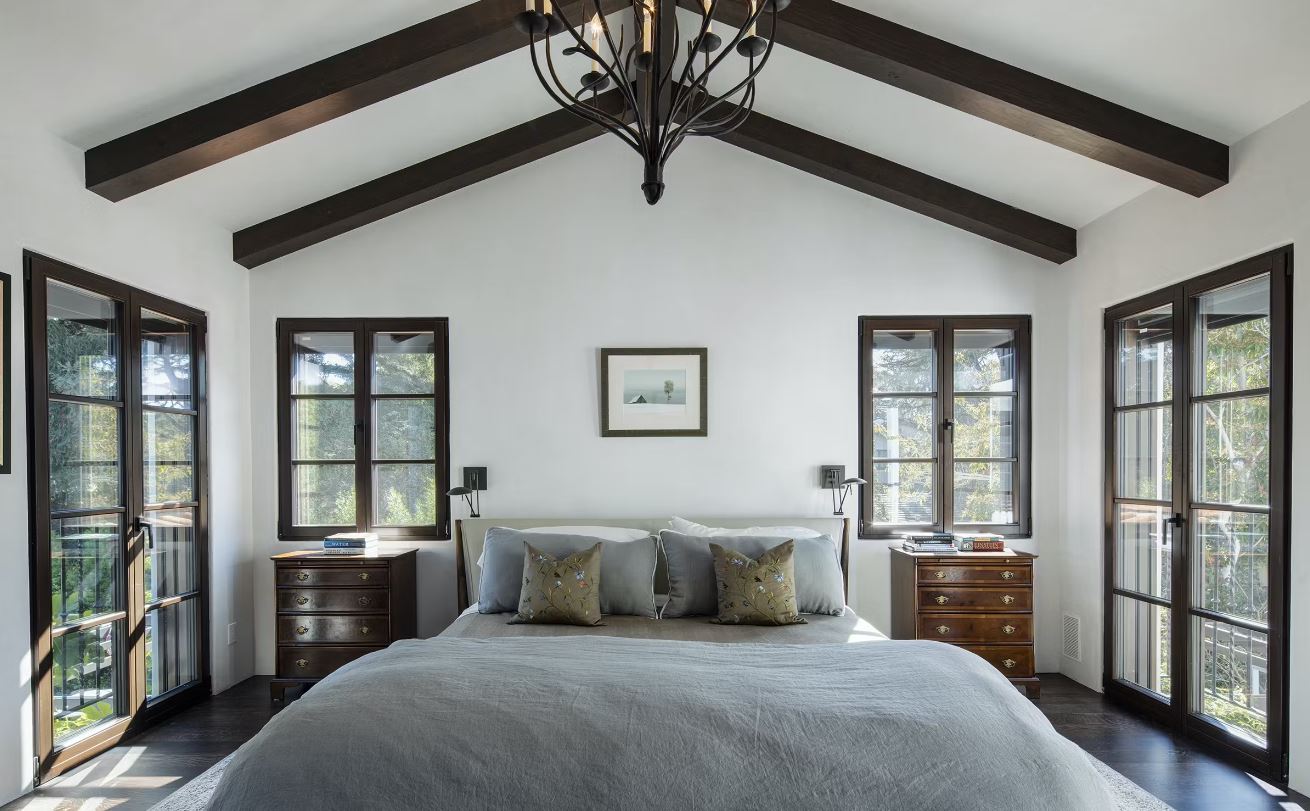

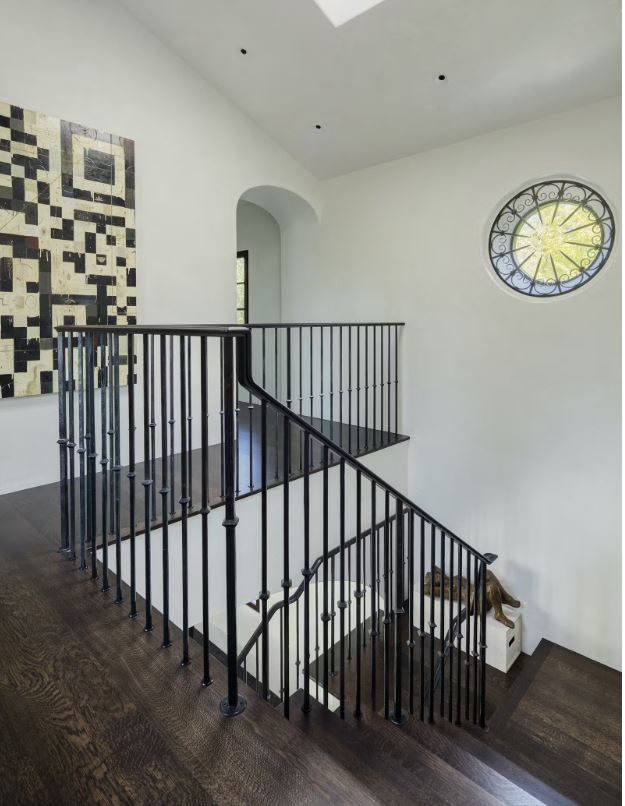

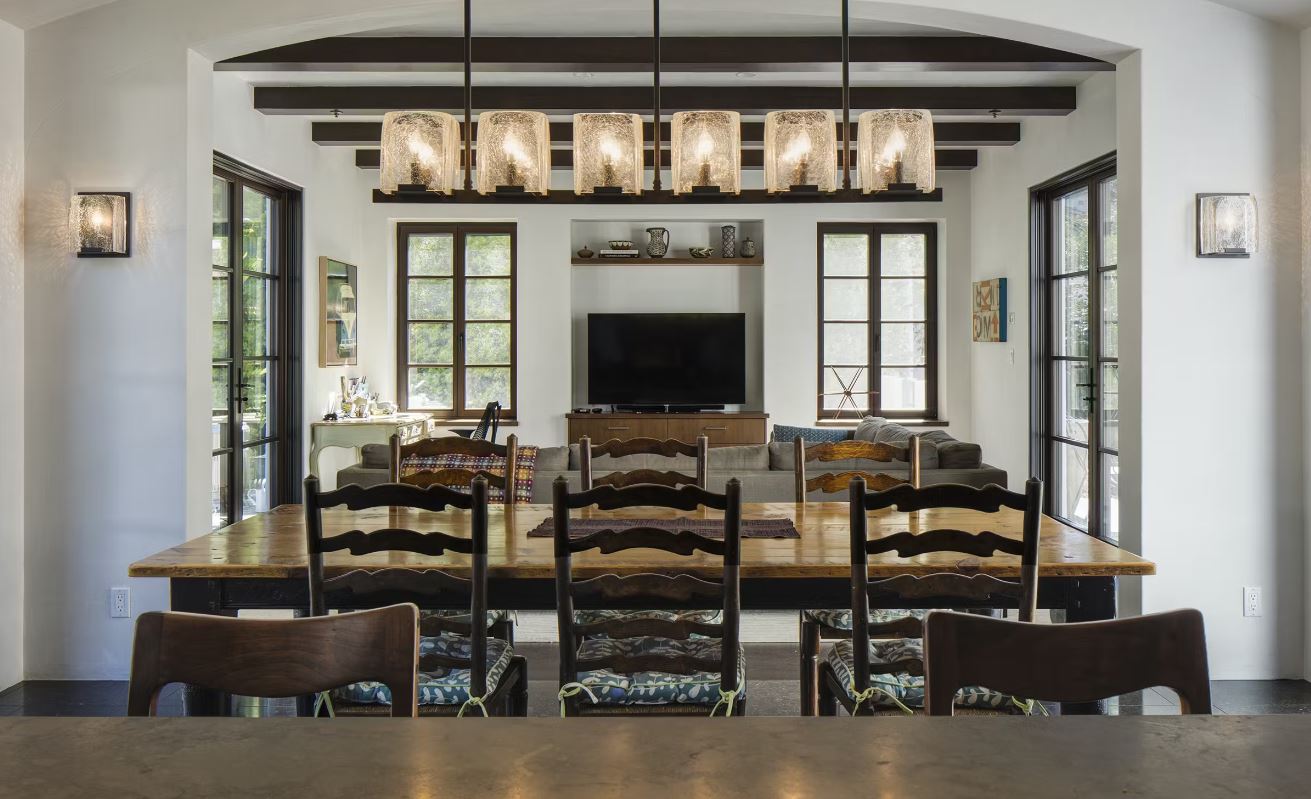

Dining and living room conditioned with a radiant ceiling. Bedroom that utilizes radiant heating and cooling ceiling panels. Hallway in home with Messana Radiant Ceiling System. Staircase in home with a Messana Ray Magic radiant ceiling system.
